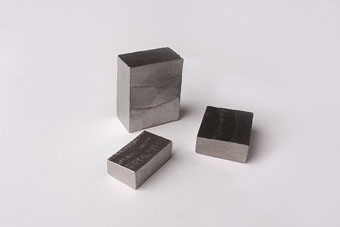

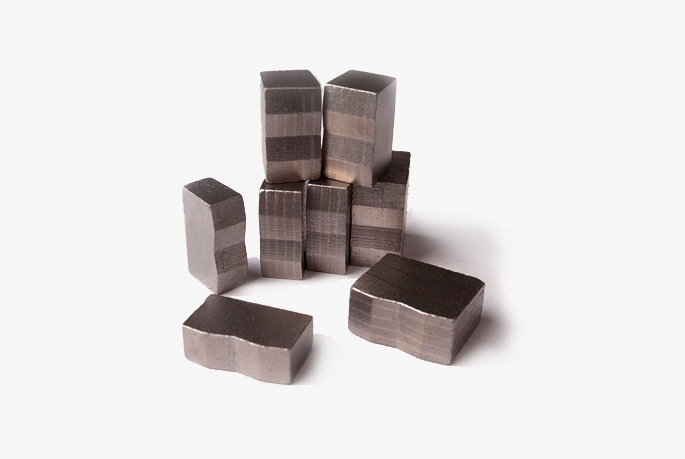

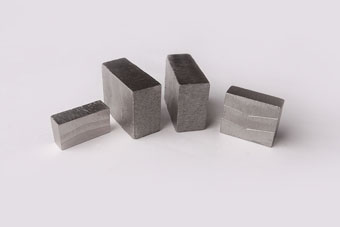

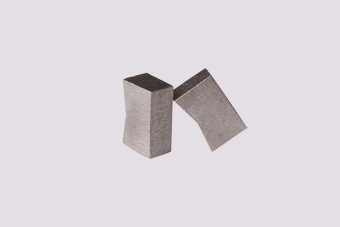

JDK-K JDK-M
Features
1.The unique "<<" "K" "M" design of segment makes fast diamond exposed and high cutting efficiency
2.The design of segment allows ideal debris removal and better cooling.
3.It works in low noise, small cutter slot which ensure maxium use of stone and uniform thickness
Technical
| Name |
Specification |
Core Thickness |
Segment Dimension |
Segment Number |
Application |
| JDK Block Cutting Segment |
Φ900 |
5.0 |
24x7.0/6.2x 15(20) |
64 |
Granite |
| Φ1000 |
5.0 |
24x7.0/6.2x 15(20) |
70 |
| Φ1200 |
5.5 |
24x7.4/6.6x 15(20) |
80 |
| Φ1400 |
6.0 |
24x8.0/7.2x 15(20) |
92 |
| Φ1400 |
6.5 |
24x8.4/7.6x 15(20) |
92 |
| Φ1600 |
7.2 |
24x9.2/8.4x 15(20) |
104/108 |
| Φ1800 |
7.5 |
24x10.0/9.2x 15(20) |
120 |
| Φ2000 |
8.0 |
24x10.6/9.8x 15(20) |
128/132 |
| Φ2200 |
9.0 |
24x11.0/10.2x15(20) |
132/136 |
| Φ2500 |
9.0 |
24x11.5/10.5x15(20) |
140 |
| Φ2700 |
9.0 |
24x12.5/11.5x15(20) |
140 |
| Φ3000 |
9.3 |
24x13/12x 20 |
160 |
| Φ3500 |
9.5 |
24x13.5/13.0/12.2x30 |
180 |
