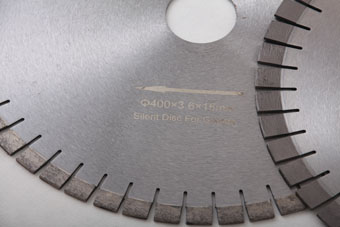

JDK-TG
Features

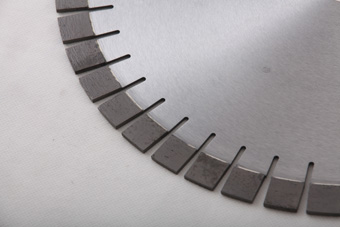

1.Unique 'T" design of segment side face allows ideal debris removal and better cooling.
2.Comparing to the long segment (L-40),this short segment (L20) design makes better sharpness and cutting efficiency.
3.This special design will not allow easy edge collapse,break,tapered slab etc.
Technical
| Name |
Specification |
Core Thickness |
Segment Dimension |
Segment Number |
Application |
Note |
| JDK -TG |
Φ300 |
2.2/2.0 |
20x3.6/3.3/3.0x15(20) |
38 |
Granite |

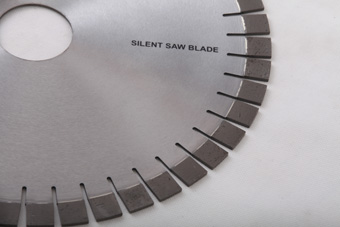

Silent or Non Silent |
| Φ350 |
2.4/2.2 |
20x3.6/3.3/3.0x15(20) |
46 |
| Φ400 |
2.8/2.4 |
20x4.0/3.7/3.4x15(20) |
52 |
| Φ450 |
2.8/2.6 |
20x4.3/4.0/3.7x15(20) |
60 |
| Φ500 |
3.2/2.8 |
20x4.3/4.0/3.7x15(20) |
66 |
| Φ550 |
3.2/3.0 |
20x5.0/4.7/4.4x15(20) |
72 |
| Φ600 |
3.6/3.2 |
20x5.0/4.7/4.4x15(20) |
80 |
| Φ650 |
4.0/3.6 |
20x5.0/4.7/4.4x15(20) |
84 |
| Φ700 |
4.0/3.8 |
20x5.4/5.1/4.8x15(20) |
90 |
| Φ800 |
4.5/4.2 |
20x6.0/5.7/5.4x15(20) |
100 |
Other specification are available upon request.
