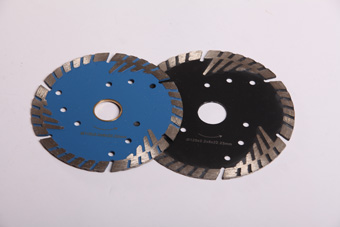

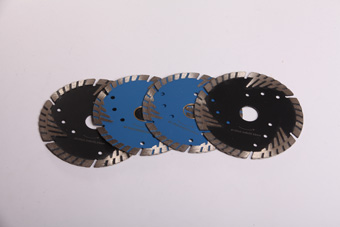

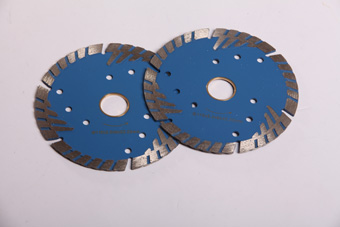

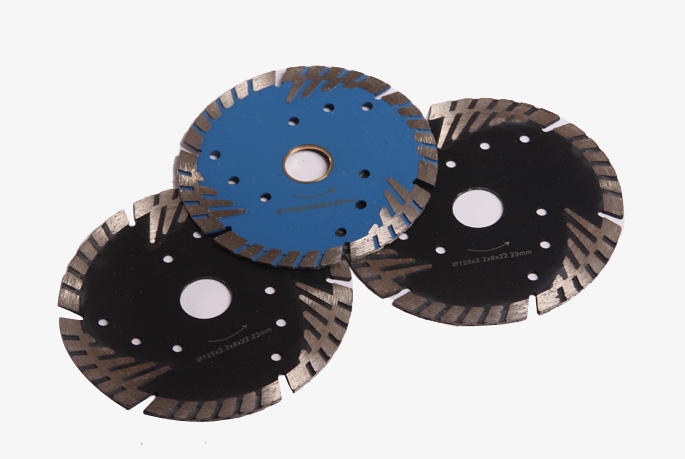

JDK-PTB
Features
1.The design of protection segments provides more effective protection of body and teeth.
2.Widely used for cutting and nondestructive grooving on marble,granite,ceramic tile,concrete on manual cutting machine.
3.Sutable for dry/wet cutting.
Technical
| Name |
Diameter |
Inches |
Segment Dimension |
Arbor |
Application |
Note |
| JDK -PTB |
Φ105 |
4'' |
8 |
22.23/20 |
Granite |
Non Silent |
| Φ125 |
5'' |
8 |
22.23/20 |
| Φ150 |
6'' |
8 |
22.23/20 |
| Φ180 |
7'' |
8 |
22.23/20 |
| Φ200 |
8'' |
8 |
22.23/20 |
| Φ230 |
9'' |
8 |
22.23/20 |
| Φ250 |
10'' |
8 |
22.23/20 |
Other specification are available upon request.
