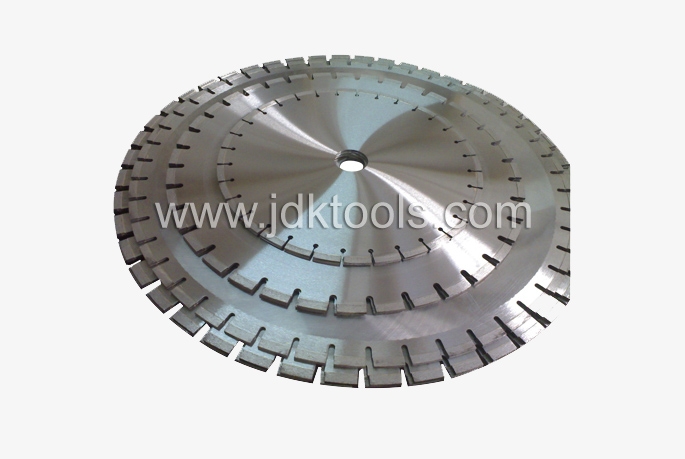

JDK - BK JDK - BM
Features
1.The unique "<<" "K" "M" design of segment makes fast diamond exposed and high cutting efficiency
2.The design of segment allows ideal debris removal and bettering cooling.
3.It works in low noise,small cutter slot which ensure maxium use of stone and uniform thickness
Technical
| Name |
Specification |
Core Thickness |
Segment Dimension |
Segment Number |
Application |
Note |
| JDK-B << JDK-BK JDK-BM |
Φ900 |
5.0 |
24x7.0/6.2x 15(20) |
64 |
Natural Stone |
Non Silent |
| Φ1000 |
5.0 |
24x7.0/6.2x 15(20) |
70 |
| Φ1200 |
5.5 |
24x7.4/6.6x 15(20) |
80 |
| Φ1400 |
6.0 |
24x8.0/7.2x 15(20) |
92 |
| Φ1400 |
6.5 |
24x8.4/7.6x 15(20) |
92 |
| Φ1600 |
7.2 |
24x9.2/8.4x 15(20) |
104/108 |
| Φ1800 |
7.5 |
24x10.0/9.2x 15(20) |
120 |
| Φ2000 |
8.0 |
24x10.6/9.8x 15(20) |
128/132 |
Other specification are available upon request.
